Once you've registered your StrideLinx router to the StrideLinx Cloud and connected your Beckhoff to one of the LAN ports, you're ready to remotely access it.
- "Source NAT" needs to be disabled. It's on by default in the StrideLinx router's settings, but needs to be disabled for you to connect to your Beckhoff.
- Check your Beckhoff's network settings first and make sure that the StrideLinx router's LAN IP address is entered as the Beckhoff's default gateway.
- Once that is done, turn off "Source NAT" in the StrideLinx router settings at Fleet Manager > Devices > Your device > Network > LAN.
- Set up a VPN connection to your StrideLinx router.
You can now use TwinCAT to connect to your Beckhoff.
- Connect to your Beckhoff. For detailed steps, click below.
TwinCAT

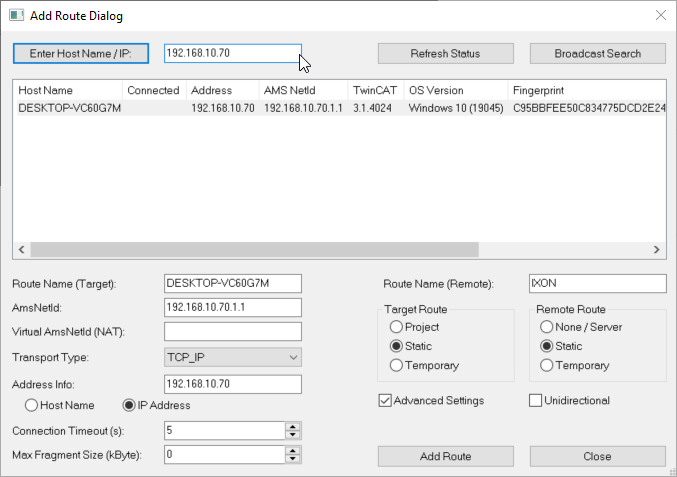

- Connect to your Beckhoff as you normally do, but make sure to manually enter your Beckhoff's IP address when searching for your Beckhoff.
- Connect to your Beckhoff as you normally do, but make sure to manually enter your Beckhoff's IP address when searching for your Beckhoff.
Unable to connect?
Use our troubleshooting article to help you solve the problem.
